WHEELCHAIR TIE DOWNS

Do you need to secure a wheelchair in a vehicle. Let us provide the Solution for YOU!!!

Top Item

The enhanced BL-7317 Docking Base is a product of our more than twenty years of research and hands-on experience.

The basic design is based on the time and street proven performance of the BL-6290 Docking Base with the addition of advanced features that promote a longer service life as well as simplifying routine maintenance. Features of the The BL-7317 Docking Base include:

The BL-7317 Docking Base sets the standard for the next generation of wheelchair securement devices.

  • Hardened Steel Reinforcement

  • Detachable Locking Mechanism for Maintenance & Service

  • Accepts the Optional Remote Cable Release

  • Durable Powder Coated Finish

  • Includes the Dependable ECU-3 Electronics Package

EZ LOCK DOCKING BASE

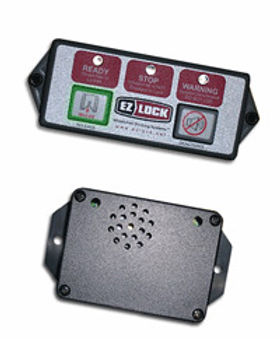

Wheelchair Electronic Botton Release

Our electronics have a reputation for dependability. The touchpad control has an array of clearly visible indicators to monitor the docking status of the wheelchair, an audible alarm, and large back-lit buttons for release and system deactivation.

The green light indicates the wheelchair is fully engaged in the docking base. The yellow light indicates the wheelchair is NOT fully engaged with the docking base. The user must exit the docking base and re-attempt until fully engaged.

The EZ Lock Wheelchair Docking System has helped many thousands of wheelchair users worldwide to overcome the obstacles associated with driving from, or riding as a seated passenger in a wheelchair.

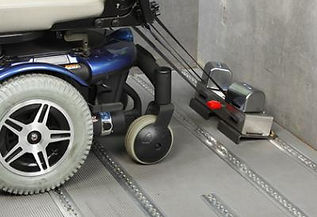

4-Point Securement Retractor Systems - QRT-360

The first 4-point, heavy-duty, fully automatic retractable tie-downs designed, engineered and built to perform. More impressively, the new QRT-360 meets these increased standards years ahead of their effective date in 2015. Features and Benefits -

  • Stronger Than All Other Retractors Energy-absorbing steel frame, new high strength 58mm webbing and fine-adjust self-tensioning from 25 high-strength teeth.

  • Positive Lock Indicator Patented feature clearly indicates when fitting is locked in anchorage(L-track application only)

  • Self-Tensioning No manual tensioning required. Retractors automatically take up ‘slack’ to ensure wheelchair
    passenger is always secured.

  • Automatic, Self-Locking Allows easy, one-handed hook-up of wheelchairs

  • Compatibility Shortened footprint allows flexibility to accommodate large wheelchairs, and like other Q'Straint systems, is compatible with the widest variety of wheelchairs and scooters

  • J-Hook Reduces twisting of belts and ensures proper securement with a quarter turn accomodating virtually all wheelchair designs

  • Foot Release Lever Redesigned easy-release eliminates the need to bend down.

  • Dual Tensioning Knobs Provide additional tensioning, if needed.

  • Interchangeable Eliminates confusion: no right, left, front or rear locations.

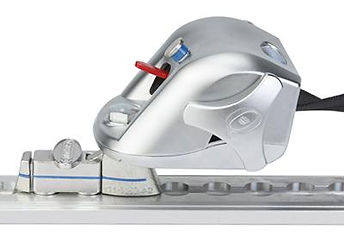

4-Point Securement Retractor Systems - QRT MAX

The QRT MAX is the latest generation of self-locking, self-tensioning retractable wheelchair securement systems. This fully automatic, knobless retractor provides a variety of innovative features which maximize ease of use to ensure passenger safety. Features and Benefits -

  • Knobless, One-Handed Operation No knobs to interfere with wheels and footrests and eliminates confusion as to whether additional tightening is required.

  • Automatic, Self-Locking Allows easy, one-handed hook-up of wheelchairs.

  • Self-Tensioning Nomanual tensioning required.Retractors automatically take up‘slack’to ensure wheelchair passenger is always secured.

  • Positive Lock Indicator Patented feature clearly indicates when fitting is locked in anchorage (L-track application only).

  • Interchangeable Eliminates confusion; no right, left, front or rear locations.

  • Low Profile & Compact No mounting bracket allows retractors to fit under most footrests.

  • Accomodates Larger Wheelchairs Reduced overall retractor length leaves more room for wheelchairs.

  • Universal Design Accommodates virtually all wheelchair designs, including scooters.

  • Durable Constructed from hardened steel and coated in zinc for maximum corrosion resistance.

  • J-Hook Reduces twisting of belts and ensures proper securement with a quarter turn accomodating virtually all wheelchair designs.

  • Foot Release Lever Easy release eliminates the need to bend down.

4-Point Securement Retractor Systems - QRT Deluxe

The QRT Deluxe is the original self-locking and self-tensioning retractable system.The Deluxe features dual tightening knobs and is considered the industry standard. Features and Benefits -

  • Dual Tightening Knobs Provides additional tensioning if needed.

  • Foot Release Lever Easy release eliminates the need to bend down.

  • J-Hook Reduces twisting of belts and ensures proper securement with a quarter turn accommodating virtually all wheelchair designs.

  • Durable Constructed from hardened steel and coated in zinc for maximum corrosion resistance.

  • Universal Design Accommodates virtually all wheelchair designs, including scooters.

  • Accomodates Larger Wheelchairs Reduced overall retractor length leaves more room for wheelchairs.

  • Low Profile & Compact No mounting bracket allows retractors to fit under most footrests.

  • Interchangeable Eliminates confusion; no right, left, front or rear locations.

  • Positive Lock Indicator Patented feature clearly indicates when fitting is locked in anchorage (L-track application only).

  • Self-Tensioning No manual tensioning required. Retractors automatically take up ‘slack’ to ensure wheelchair passenger is always secured.

  • Automatic, Self-Locking Allows easy, one-handed hook-up of wheelchairs.

The BL-6290 Docking Base

Best Seller

The introduction of the original EZ Lock BL-6290 Docking System more than 20 years ago, changed the way people think about wheelchair mobility and transportation. The BL-6290 docking system has proven to be a versatile, reliable, and safe alternative to fabric strap tie-downs.
Features of theThe BL-6290 Docking Base include:

  • Over Twenty Years of Proven Performance

  • Accepts the Optional Remote Cable Release

  • Durable Powder Coated Finish

  • Includes the Dependable ECU-3 Electronics Package

The EZ Lock Wheelchair Docking System has helped many thousands of wheelchair users worldwide to overcome the obstacles associated with driving from, or riding as a seated passenger in a wheelchair.

4-Point Securement Retractor Systems - QRT Standard

The QRT Standard is an economical, semi-automatic retractor system with a single tensioning knob to help meet minimum specifications and cost-conscious budgets without sacrificing safety. Features and Benefits -

  • Single Tensioning Knob Safely secures wheelchair and occupant in under 10 seconds.

  • Positive Lock Indicator Patented feature clearly indicates when fitting is locked in anchorage (L-track application only).

  • Interchangeable Eliminates confusion; no right, left, front or rear locations.

  • Low Profile & Compact No mounting bracket allows retractors to fit under most footrests and reduces overall retractor length to help accomodate larger wheelchairs.

  • Universal Design Accommodates virtually all wheelchair designs, including scooters.

  • Durable Constructed from hardened steel and coated in zinc for maximum corrosion resistance.

  • J-Hook Reduces twisting of belts and ensures proper securement with a quarter turn.

  • Foot Release Lever Easy release eliminates the need to bend down.

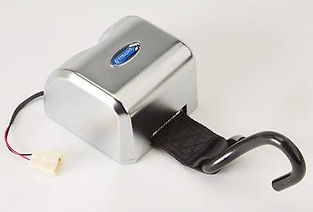

4-Point Securement Retractor Systems - QER-4000

Q’Straint introduces the QER-4000, the world’s first 4M Front Electrical Locking Retractor for the easy securement of wheelchairs in vehicles. Electric retractors are intended for use as front tie downs where limited space is an issue. The retractors are unlocked electronically through the vehicle’s electrical system. Features and Benefits -

  • 4M Webbing Allows the safe and easy securement of the wheelchair and occupant to take place on flat ground as opposed to on a ramp.

  • Zinc Casing Durable casing to protect webbing and ensure product longevity.

  • Optional Plastic Cover The durable plastic cover helps reduce weight (Europe Only).

  • Extra Lateral Strength Bar Provides superior resilience and strength.

  • Compatible With All 12 Volt Vehicles The electric retractor is easily integrated into the vehicle’s electrical system as the process involves only a single plug connection.

  • Minimum Tensile Strength of 1,500kg Exceeds industry standards by up to 20%.

  • One Bolt Installation Ensures a quick and straightforward installation as only one bolt is required to safely secure the unit to the vehicle floor.

  • Cycle Testing Successfully Undergoes 50,000 Cycle Testing Operations, surpassing automotive seatbelt standards.

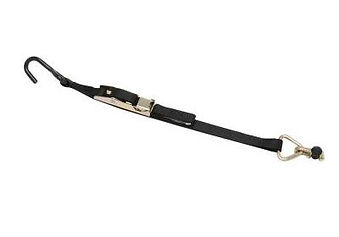

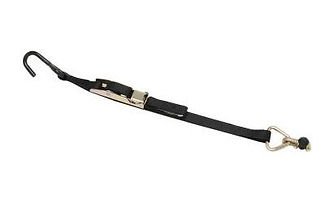

4-Point Securement Retractor Systems - M-Series

The M-Series is an economical manual securement system to help meet minimum specifications and cost-conscious budgets without sacrificing safety. Features and Benefits -

  • Manual Tensioning Cam & over-center buckle design ensures maximum passenger safety.

  • Universal Design Accommodates virtually all wheelchair designs, including scooters.

  • J-Hook Reduce twisting of belts and ensure proper securement with a quarter turn.

Docking Systems - QLK-100

The QLK-100 wheelchair docking system is the perfect solution for wheelchair passengers who drive their own vehicles and for those who want the independence of quickly securing their own wheelchair using a single point system. The QLK-100 is engineered for reliability and based on the proven design of truck and trailer hitches which have been safely used for over half a century. Features and Benefits -

  • Superior Strength & Durability Constructed of high quality, heat treated, anti-corrosive metal.

  • Removable Cover A standard feature for easier servicing.

  • Audible & Visual Indicators Advises when passenger is secure.

  • Micro-switch Protection Improved engineering eliminates micro-switch failures common on most docking systems.

  • Multiple Release Points Ability to release docking station with standard dash control, manual release on base, or an optional Remote Manual Release (in event of power failure).

  • Improved Maintenance Removable cover and specially designed spacers to prevent over-torqing of hardware, makes for easier maintenance.

  • Improved Aesthetics Our docking station and control panel is designed to compliment vehicle interiors.

Docking Systems - QLK-150

The QLK-150 wheelchair docking system is the next step in independent wheelchair securement (also known as powered lockdowns or tie-downs). It is the perfect solution for those looking to drive their own vehicle or want to quickly secure their own wheelchair using a single point system. Features and Benefits -

  • Extensive Crash Testing First and only system tested to higher WC/19 wheelchair loads; and also the only system tested Forward, Rearward and Sideways.

  • Slim & Flexible Dash Control Compact design has a much larger touch area and features imbedded LED indicators showing system status.

  • Flush Surface Eliminates "snags" and gives users an immediate 3/16" (5mm) of additional bolt clearance.

  • Tapered Channel Helps smoothly guide users into place.

  • Reduced Footprint Reduces castor interference with shortened design front to back (over the QLK-100) by 1.5" (38mm).

  • SMART (ECM) Newly designed Micro-processor controller.

  • Sleep Function When user exits docking base, system draws 76.5 micro amps (0.0000765 Amps): About 5 times less than other docking systems.

  • Low Current Draw Solenoid release draws between 4.2 – 9.1 amps (versus 18 Amps).

  • Reduced Electrical Components New design only requires a single micro-switch and eliminates thermal switch for improved electrical reliability.

  • Plug & Play Serviceability Solenoid and limit switch feature quick connectors for faster maintenance and easier servicing.

  • Screw-Terminal Connectors Connectors are easily removed for faster wire routing, and eliminates additional crimping and soldering.

OMNI Floor Anchor Systems - Oval L-Pocket

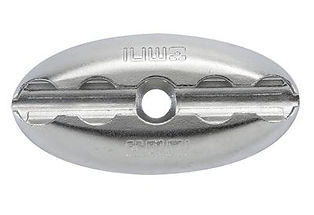

The newly designed Oval L-Pocket (or Oval Floor Pocket) is an easy to install, simple to use and low maintenance fixed securement floor anchorage installed on the surface of the vehicle floor.OMNI Anchorages are compatible with both Q'Straint and Sure-Lok Systems. Features and Benefits -

  • Application Fixed securement position.

  • Durable & Low Maintenance Constructed from cast stainless steel for maximum strength and durability.

  • Easy Installation Just a single bolt required.

  • Compatible Compatible with all L-track fittings: QRT, M-Series, and all OMNI Approved products.

  • Tested Tested 9200 LBF no failure.

The newly designed Oval L-Pocket (or Oval Floor Pocket) is an easy to install, simple to use and low maintenance fixed securement floor anchorage installed on the surface of the vehicle floor. OMNI Anchorages are compatible with both Q'Straint and Sure-Lok Systems.Features and Benefits -

  • Application Fixed securement position.

  • Durable & Low Maintenance Constructed from cast stainless steel for maximum strength and durability.

  • Easy Installation two bolt install.

  • Compatible with L-track fitting for: QRT, M-Series, and all OMNI Approved products.

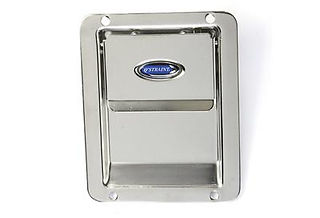

OMNI Floor Anchor Systems - Recessed L-pocket

OMNI Floor Anchor Systems - Slide 'N click

The newly designed Oval L-Pocket (or Oval Floor Pocket) is an easy to install, simple to use and low maintenance fixed securement floor anchorage installed on the surface of the vehicle floor.OMNI Anchorages are compatible with both Q'Straint and Sure-Lok Systems. Features and Benefits -

  • Application fixed securement position that allows for one-handed operation.

  • 360 Degree Rotation provides flexibility in attachment.

  • Single Bolt Installation eliminates complicated installs and alignments.

  • Durable & Low Maintenance cast stainless steel for maximum strength and durability.

  • Low Profile & Compact reduces potential interference with wheelchair components (footrests, etc.)

  • Compatible with all QRT Retractor Systems, the Sure-Lok Titan Series, and all OMNI Approved products

OMNI Floor Anchor Systems - L-Track

The newly designed Oval L-Pocket (or Oval Floor Pocket) is an easy to install, simple to use and low maintenance fixed securement floor anchorage installed on the surface of the vehicle floor.OMNI Anchorages are compatible with both Q'Straint and Sure-Lok Systems. Features and Benefits -

  • Application flexible securement track. Accommodates 5/16" bolts.

  • Durable & Low Maintenance constructed from aluminum alloy (6061-T6) for superior corrosion resistance.

  • Multiple Profiles to suit your specific application.

  • Multiple Length & Drilling Patterns standard 82 degree countersunk holes are pre-drilled every 4”.

  • Compatibility all OMNI Approved L-Track features 3 new profile designed to be compatible with all Q’Straint and Sure-Lok tie-downs and occupant restraints.

XPress Paddle Handle

Unlike other paddle handle release systems, the new XPress Paddle Handle allows for both hands to be free during the securment process. Features and Benefits -

  • 15 Second Electric Time Delay allows the driver or attendant to use both hands to connect and disconnect the wheelchair.

  • Manual Release in the event of a power failure, the manual paddle release allows for the securement system to function normally.

  • Red Light Visual Indicator indicates that the securement belts are unlocked, providing a support system to the driver or attendant.

  • Sound Indicator alerts that the securements are unlocked, providing an additonal safey feature.

  • 12 or 24 Volts ensures compatibility with all types of city transport and rail applications.

  • Nickel-Plated Steel Casing provides strength and durability.

  • Safety Cover optional safety cover protects the XPress paddle handle from accidental release.

  • Fully Automatic & Self-Tensioning saves time and ensures proper securement of the wheelchair.

  • Universal Application designed for use on barriers, flip seats, bulkheads and other applications - Offers ultimate flexibility and can be used in virtually all city transport and rail applications.

Wheelchair Stations & Module - Quantum

Introducing Quantum: The transportation industry’s first fully automatic rear-facing wheelchair securement station. Combining transportation insight, intelligent technology and high quality construction, Quantum lets wheelchair and scooter passengers board the bus or train , position their chair and simply push a button to secure themselves in a stable and safe rear-facing position. All in under 25 seconds — without requiring the driver to leave their seat to help. Features and Benefits -

  • User-Operated Quantum's arms gently secure the rider in place, offering unprecedented independence for your mobility passengers.

  • One-Touch Securement properly and safely secures all transportable wheelchairs and scooters at the push of a button.

  • Reduced Dwell Times complete securement takes place in under 25 seconds.

  • Designed for Compatibility designed to international standards and built with transportation industry-standard technologies, Quantum is ideal for both new fleet or retrofit applications in bus, light rail and rail.

  • Built to Last rubber retaining arms specifically selected to maintain grip through many seasons of use; stainless steel framework withstands the harshest environments.

  • Low Maintenance entire system has been engineered to simplify and minimise maintenance over a lifetime of many thousands of cycles

Wheelchair Stations & Module - Q'POD

Introducing The Q'POD. The first fully integrated forward facing wheelchair securement station specifically designed and tested for transit wheelchair passenger transportation. Brought to you by Q'Straint and 4One, and proud to meet Buy-America. Features and Benefits -

  • Integrated Wheelchair Securements rear self-tensioning wheelchair restraints and lap belts are fully enclosed. In addition to reducing tripping hazzards and potential for vandalism to restraints, they are pre-positioned for proper securement angles of wheelchairs.

  • Electric XPress Delay our proven electrical delay system enables drivers to unlock rear restraints for 15 seconds - enabling quicker wheelchair securement and better positioning. This remote release minimizes bending by driver/operators, reducing back injuries and improving securement.

  • Slim-Profile Flip Seat Q′POD features a newly designed flip seat, accomodating wider wheelchairs in a smaller footprint...but can also be used with other seating options. Q′POD features the seating and fabric options you′ve come to expect from Freedman and 4One Seating.

  • Universal Design Q′POD secures virtually all styles of wheelchairs, including scooters - the simplified operation allows for quicker securement times and reduced vehicle dwell time.

  • Velocity Xpress (Mechanical) Delay The fully mechanical Velocity XPress remote release dramatically lowers the cost of outfitting existing buses with Q’PODs in a retrofit installation. No electricity is required; it eliminates the need for interlock integration and the entire project can be completed in much less time.

Q’UBE 3-Point Securement System

Now with the Q’UBE 3-Point Securement System, operators that must maintain maximum seating capacities in a 2+2 seating layout can still do so thanks to an innovative and patented Sliding Bumper that provides the critical stabilization and tip-over prevention that the ADA requires for 3-Point Securement.

The Q’UBE 3-Point was created for transit operators that need to maintain maximum passenger seating capacities in 2+2 seating layouts: A 2-passenger forward facing flip seat combined with a 2-passenger aisle facing flip seat. It was designed as a fully adaptable, complete bolt-in solution that can be mounted for many vehicle applications without the need to run cables or wires. Features and Benefits -

  • Sliding Bumper makes it possible to achieve safe securements in 2+2 seating configurations with proper 3-Point stabilization.

  • Pop-up Lever slide can be hand or foot operated, reducing operator bending and potential injury.

  • Rubber Surface rubber surface grips tightly to mobility device wheels for proper securement.

  • Low Profile seating capacities are maintained for 2-flip seats and tripping hazards reduced.

  • Stainless Steel heavy duty construction is durable and corrosion resistant.

  • Easy Storage automatically returns to the storage position with a touch of the release lever.

  • Smooth Performance recirculating Ball Bearing design for heavy duty strength and smooth operation.

Wheelchair Stations & Module - Q'POD

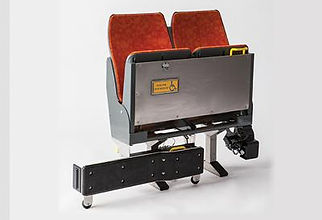

The Q'UBE was created with vehicle operators in mind, designed as a fully adaptable, complete bolt-in solution that can be mounted for many vehicle applications without the need to run cables or wires.

The Q'UBE features a mechanical delay system, an easy-to-reach single motion release that significantly reduces wheelchair securement time and effort. A wide assortment of brackets and occupant solutions ensure that the Q’UBE will work with your existing layouts and is the perfect retrofit for your fleet. Features and Benefits -

  • Fully Adaptable Ideal for both new and retrofit applications, the Q’UBE installs into Transit, Para-Transit and School Bus vehicles and can work with existing anchorage systems.

  • Modular Design designed as a complete bolt-in solution that can be mounted for a variety of vehicle applications.

  • Mechanical Delay System an easy-to-reach rear securement release with a positive “Locked” and “Unlocked” position. The release lever gives drivers enough time to properly secure rear wheelchair tie-downs.

  • Low Profile fits easily under wheelchair footrests.

  • Self-Tensioning & Self-Locking fully automatic retractors that can auto-release without activation of the timer.

  • Stainless Steel high quality construction.

  • J-Hooks rear securements featuring J-Hooks to eliminate dangerous twists and tangles.

  • Crash tested and fully ADA approved.

Parts & Accessories

Securement Belt Parts

Q5-6327

Postural belt with padding for wheelchair or seat. Not a safety belt. Postural belt also avail able in yellow, Q5-6327-Y.

Q04F0013

Manual Cable Release.

Q8-6301-1

One claw for cable release (used on one retractor, retractor to be purchased seperately) 50" cable and claw.

Q8-6301-2

Two claws for cable release handle(used on two retractors, retractor to be purchased seperately) 50" cable and two claws

Q8-6324

Postural belt with padding for wheelchair or seat. Not a safety belt. Postural belt also available in yellow, Q5-6327-Y.

Q5-6300

Lap cable extension for L track. Fits most OEM female buckles. OEM buckle not included.

Q5-7590

Belt cutter; to be used in emergency evacuations.

Q5-8522

Storage pouch for securements. Meets FMVSS 302.

Occupant Securements

Q5-7580

Webbing loops may be used with a securement where hooks cannot be fitted onto the wheelchair frame.

Q5-6409

Neck Protector.

Q8-6326-A1

One retractor for lap/shoulder belt, 1 extension, 2 pin connectors.

Q8-6326-A3

Three retractors: Lap (2) and (1) for the shoulder belt.

OMNI Floor Anchor Systems

Q5-8525-SC2

The latest in the Slide 'N Click line. This bracket allows for storage of 2 Slide 'N

Q5-8525-SC

The latest in the Slide 'N Click line. This bracket allows for storage of 4 Slide 'N

FE201006

OMNI Track 5/16" Bolt Kit.
3” long with automotive grade plating and a special sealant applied under bolt head to provide a seal between track and bolt

QC06058

L-Track End Cap for Flange Series to finish off your flush-mount installation for a professional look.

bottom of page
